Remember, homework submissions are recorded, so you must
either do your own work or put the name of everyone on a single copy of
the homework when you work with others. If you do not follow this
policy, you will be given a failing grade in the course, and risk
college disciplinary action.
Assignment: Write your answers to the following questions on
a piece of paper, and bring them to class on November 19.

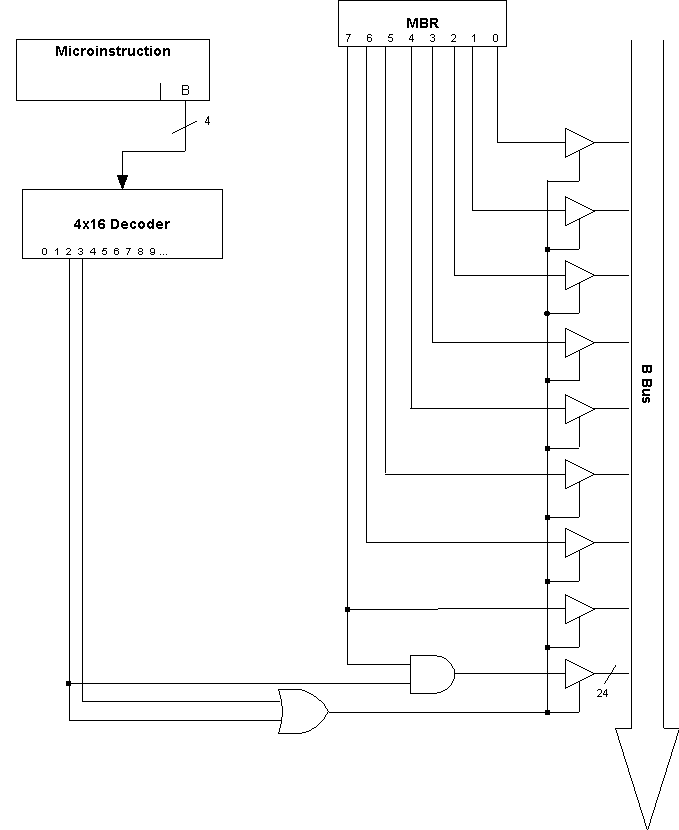

Chapter 4: Questions 11, 14, 15, and 17. Also, Draw a diagram that
shows how the MBR would connect to the B Bus. Assume there are two
control signals, named "MBR" and "MBRU" that are inputs to your
circuit), coming from the 4x16 decoder in Fig. 4-6.
