Minimizing Boolean Functions

This document describes graphical and algebraic ways to minimize boolean functions. It includes a Java program that you can use to experiment with the algebraic algorithm outlined below. The subject of minimization is also covered in many textbooks, articles, and other web sites. Here are a few references:

Why Minimize?

All the datapath and control structures of a digital device can be represented as boolean functions, which take the general form:

y = ∑(x, … )

where "(x, … )" is a set of boolean variables (variables that may take on only the values zero and one). These boolean functions must be converted into logic networks in the most economical way possible. What qualifies as the "most economical way possible" varies, depending on whether the network is built using discrete gates, a programmable logic device with a fixed complement of gates available, or a fully-customized integrated circuit. But in all cases, minimization yields a network with as small a number of gates as possible, and with each gate as simple as possible.

To appreciate the importance of minimization, consider the two networks in Figures 1 and 2. Both behave exactly the same way! No matter what pattern of ones and zeros you put into a, b, and c in Fig. 1, the value it produces at y will be exactly matched if you put the same pattern of values into the corresponding inputs in Fig. 2. Yet the network in Fig. 2 uses far fewer gates, and the gates it uses are simpler (have smaller fan-ins) than the gates in Fig. 1. Clearly, the minimized circuit should be less expensive to build than the unminimized version. Although it is not true for Fig. 2, it is often the case that minimized networks will be faster (have fewer propagation delays) than unminimized networks.

Figure 1

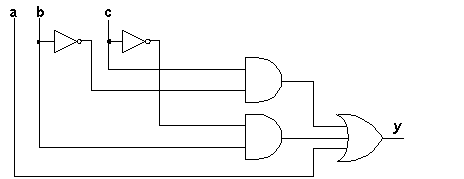

Figure 2

• The variables in the expression on the right side of a boolean equation are the input wires to a logic network. The left side of a boolean equation is the output wire of the network.
• Any boolean equation or combinational logic network can be completely and exactly characterized by a truth table. A truth table lists every possible combination of values of the input variables, and the corresponding output value of the function for each combination. There are 2ⁿ rows in the truth table for a function or network with n input variables, so it isn't always practical to write out an entire truth table. But for relatively small values of n, a truth table provides a convenient way to describe the function or network's behavior exactly.
  Note

  Always list the combinations of input values in binary counting order from top to bottom ( 000, 001, 010, 011, … ).
• Every row of a truth table with a one in the output column is called a minterm. A convenient way to represent a truth table is to treat each combination of input variables as a binary number and to list the numbers of the rows that are minterms.

  This document uses the function with the following truth table as a running example:

  a	b	c	Y
  0	0	0	0
  0	0	1	1
  0	1	0	1
  0	1	1	0
  1	0	0	1
  1	0	1	1
  1	1	0	1
  1	1	1	1

  This truth table can also be represented as the list of minterms, [ 1, 2, 4, 5, 6, 7 ]. That is, the truth table has a 1 in the Y column for the rows where the binary number represented by the values of a, b, and c is one of the numbers listed. The other two rows (0 and 3) have a 0 in the Y column, and thus are not minterms.

• One standard way to represent any boolean function is called "sum of products" (SOP) or, more formally, disjunctive normal form. In this form, the function is written as the logical OR (indicated by +) of a set of AND terms, one per minterm.

  For example, the disjunctive normal form for our sample function would be:

            Y = a'b'c + a'bc' + ab'c' + ab'c + abc' + abc


• There is also a conjunctive normal form, which represents an expression as a product of sums rather than as a sum of products. The material presented below can be extended to deal with conjunctive normal forms rather than disjunctive normal forms. We'll leave that as as one of those classic "exercises left for the student," and deal with just disjunctive normal forms.
• A literal is a variable that is either complemented or not in a product term. The minterms in our sample function have a total of six literals: a, a', b, b', c, and c'. The network in Figure 2 uses only 5 literals because a' isn't used. In the disjunctive normal form of a function, each product term has one literal for each variable. (6 literals for 3 variables in our example function.)
• Figure 1 implements our sample function, and demonstrates translating a disjunctive normal form function directly into a logic network. The procedure is as follows:
  1. Use inverters to generate all possible literals (the six vertical wires on the left in Fig. 1).
  2. Draw an AND gate for each minterm.
  3. Connect the outputs of all the AND gates to a single OR gate.
  4. Connect the inputs of each AND gate to a pattern of literals in such a way that it will generate a 1 when the pattern of input values matches the particular minterm assigned to it.
• A minimal form of a boolean expression is one which implements the expression with as few literals and product terms as possible. There may be more than one minimal form of an expression; if there is jut one minimal form, that form is the minimum.
• There are many rules for manipulating a boolean expression algebraically, but there is just one rule that you need in order to minimize a function once it is in disjunctive normal form, the rule of complementation.

  The rule of complementation says that (x + x') is 1, so any two terms that are in the form (x + x')Y can be reduced to just Y without changing its meaning. Another way of saying this is that two product terms can be simplified if the only difference between them is the value of exactly one variable, in which case that variable can be eliminated from both terms to give an equivalent single term. For example ab'c + a'b'c is equivalent to (a + a')b'c, which is the same as the single product term, b'c.

A Karnaugh Map is a graphical way of minimizing a boolean expression based on the rule of complementation. It works well if there are 2, 3, or 4 variables, but gets messy or impossible to use for expressions with more variables than that.

The idea behind a Karnaugh Map (Karnaugh, 1953) is to draw an expression's truth table as a matrix in such a way that each row and each column of the matrix puts minterms that differ in the value of a single variable adjacent to each other. Then, by grouping adjacent cells of the matrix, you can identify product terms that eliminate all complemented literals, resulting in a minimized version of the expression.

Figure 3 shows how the minterms in truth tables are placed in a Karnaugh Map grid for both 3 and 4 variable expressions.

Figure 3

Looking at the 3 variable map on the left in Fig. 3, note that minterm 0 (000₂) is just above minterm 4 (100₂). This arrangement means that if both minterms 0 and 4 occur in a function, the first variable (the one named a in Fig. 3) appears in both its true and complemented form, and can be eliminated. The top row of the Karnaugh Map is labeled with a' and the lower row with a: Any minterms appearing in the top row have the literal a' in them, and any minterms in the bottom row have the literal a in them. At the same time, note that each column has the same values for the variables b and c. Also, the columns are arranged in an order so that only one variable changes value as you go from one column to the next. Thus, the first two columns differ in the value of c, the second and third columns differ in the value of b, and the third and fourth columns differ in the value of c again. Furthermore, the first and fourth columns are "next to" each other as well, because they differ from each other just in the value of b.

The right side of Figure 3 shows that this same pattern (adjacent columns differ by the value of a single variable) applies to the rows of a Karnaugh map too: The first and second rows of that map differ in the value of b, the second and third differ in the value of a, the third and fourth differ in the value of b, and the first and fourth differ in the value of a.

Figure 4 shows our sample function drawn as a Karnaugh Map. Minterms 1 and 2 are in the second and fourth columns of the top row, while minterms 4, 5, 7, and 6 appear from left to right in the four columns of the bottom row.

Figure 4

A Karnaugh Map is used to produce a minimal sum of products implementation of an expression by drawing rectangles around groups of adjacent minterms in the map; each rectangle will correspond to one product term, and the full expression will be constructed as the OR (sum) of all the product terms. The goal is to have as few product terms as possible, which implies that each product term will account for as many minterms as possible.

Here are the rules for drawing the rectangles:

• Every minterm must be inside at least one rectangle, but there must not be any zeros inside any rectangles.
• Every rectangle has to be as large as possible.
• Rectangles may wrap around to include cells in both the leftmost and rightmost columns. likewise for the top and bottom rows.
• The number of minterms enclosed in a rectangle must be a power of two (1, 2, 4, 8, or 16 minterms for 4-variable maps).
• Some functions have "don't care" conditions, which are combinations of inputs that will never occur, resulting in cases where it doesn't matter whether the output is a zero or a one. Where these don't care conditions appear in a Karnaugh Map (usually indicated by X's instead of ones or zeros), they may be included inside rectangles or not depending on what will make the rectangles as few and as large as possible.

Figure 5 shows the rectangles for our sample function, following the procedure outlined above:

Figure 5

The largest rectangle (the bottom row) corresponds to the product term a. By enclosing four minterms, two variables have been eliminated resulting in a single product term with a single variable. The rectangle in the second column encloses two minterms, eliminating one variable (a) from that product term. Similarly, the rectangle in the fourth column eliminates a from that product term. The resulting sum of products function is:

If you examine Fig. 2, you will see that that logic network implements exactly this function.

Every time you double the number of minterms inside a rectangle, you eliminate one variable from the resulting product term. Every doubling corresponds to applying the rule of complementation again. The next section shows how to do the same thing algebraically.

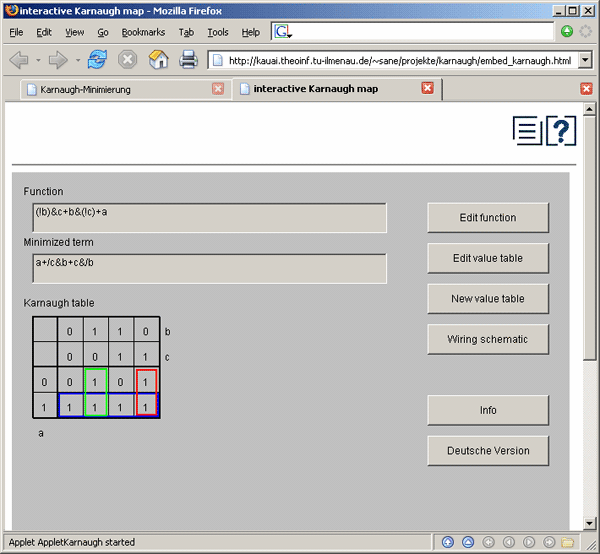

The Interactive Karnaugh Map mentioned at the beginning of this page is a very nice way to see how to draw the rectangles. You can enter the function you want to process algebraically, by editing a truth table, or just by clicking on cells in the Karnaugh Map itself. Figure 6 is a screen shot of the applet showing how it displays our sample function:

Figure 6

Minimizing an expression algebraically involves repeatedly applying the rule of complementation, starting with the disjunctive normal form of the function, and ending with a set of product terms called prime implicants. A prime implicant is a product term that will generate ones only for combinations of inputs that are minterms of the disjunctive normal form of the function, and which cannot be further reduced by combining with any other term. They correspond to the rectangles in a Karnaugh Map.

We will call each step in this process a "pass." It takes two passes to minimize our sample function. The following chart shows the original disjunctive normal form of the function as "Pass 0" and shows what reductions are performed for the other two passes.

The rules to follow for each pass are:

• Each term present in one pass must be combined with another term if possible.
• Any terms that cannot be combined are carried forward unchanged to the next pass.
• A term that has already been used once in a pass should be used again if it will allow another term to be reduced. For example, in Pass 1 above, ab'c is used twice, and so is abc'.

The rule about reusing terms in a pass corresponds to circling some minterms more than once in a Karnaugh Map. The two minterms that are reused in Pass 1 above are exactly the same two that are circled twice in the Karnaugh Map of Figure 5.

Once the prime implicants of an expression have been determined, a minimal subset of them has to be selected. Picking a minimal subset of prime implicants relies on the notion of minterms being "covered" by prime implicants. For our sample function, the prime implicant a covers minterms 4, 5, 6, and 7; the prime implicant b'c covers minterms 1 and 5, and and the prime implicant bc' covers minterms 2 and 6. In this example, we need all three prime implicants in order to cover all the minterms at least one, and the expression shown at the end of Pass 2 is the minimized form for our sample function.

But whenever there is more than one minimal form for an expression, the different forms will correspond to different subsets of the complete set of prime implicants. For any one of the minimal forms there will be extra prime implicants that have to be discarded.

The following procedure describes a way to determine one minimal form of an expression after all the prime implicants have been determined.

• For every minterm that is covered by just one prime implicant, that prime implicant must be included in the minimal form. These minterms are called essential prime implicants because it is essential to include them in the minimization.

  For our sample function, minterms 2, 3, and 4 are each covered by exactly one prime implicant, so all three of the prime implicants are essential, there is just one minimized form, and there is nothing more to do.

• Make a list of all minterms that are not covered by any of the essential prime implicants.
• Make a list of unused prime implicants. Order this list by the number of literals each prime implicant contains.
• If any remaining minterms are covered by just one of the remaining prime implicants, the corresponding prime implicants must be added to the minimization, and all the minterms they cover must be removed from the list of uncovered minterms.
• If there are any uncovered minterms add the unused prime implicant with the smallest number of literals to the minimization, and remove all minterms that are covered by this prime implicant from the list of uncovered minterms.

  If two or more prime implicants have equally small numbers of literals, there is more than one minimal solution. Finding them all involves systematically substituting each of the tied prime implicants into the different minimal forms being generated.

• Remove all prime implicants that fail to cover any of the remaining minterms from the list of unused prime implicants.
• Repeat the previous three steps until all minterms have been covered.

Disclaimer! The algorithm given here is based on the Quine-McClusky "chart" method described in (McClusky, 1965) and in (Kohavi, 1970). But it is not exactly the same as the procedure given in those references, and may not produce the same results. It should, however, produce a fully minimized function.

There are two version of the minimization program available. The first was developed in 2000. It must be invoked from a command prompt such as a Windows "DOS Window" or a L/Unix shell prompt. The second version was developed in 2005, and can still be run from a command prompt, but also can be run with a graphical user interface. Both versions require a Java runtime environment (JRE), available from Sun Microsystems' Java web site. The first version of the program will work with JRE version 1.3 or later, and probably works with some older JRE's as well. The second version definitely needs JRE version 1.5 or later.

The program allows you to enter either a boolean expression or a list of minterm numbers, and displays a series of messages that show the steps it followed to perform the minimization. Some expressions can be minimized more than one way, but the program shows just one minimization even if others are possible.

Running the Program

Sample Output (First Version of the Program)
